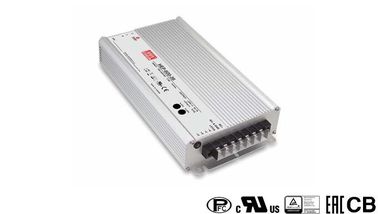

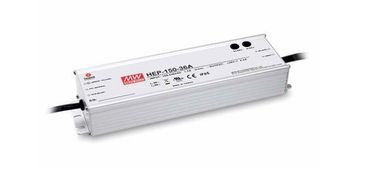

240 W 36 V Constant Voltage LED Power Supply Waterproof For LED Lighting 90 - 305 VAC

240 W 36 V Constant Voltage LED Power Supply Waterproof For LED Lighting 90 - 305 VAC

    • 240 W 36 V Constant Voltage LED Power Supply Waterproof For LED Lighting 90 - 305 VAC
    • 240 W 36 V Constant Voltage LED Power Supply Waterproof For LED Lighting 90 - 305 VAC
    • 240 W 36 V Constant Voltage LED Power Supply Waterproof For LED Lighting 90 - 305 VAC
    • 240 W 36 V Constant Voltage LED Power Supply Waterproof For LED Lighting 90 - 305 VAC
  • 240 W 36 V Constant Voltage LED Power Supply Waterproof For LED Lighting 90 - 305 VAC

    Product Details:

    Place of Origin: CHINA
    Brand Name: Meanwell
    Certification: IP67, PFC, CUL, CE, CB, PSE,TUV
    Model Number: HLG-320H-36A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1unit
    Price: Negotiable
    Packaging Details: carton packing
    Delivery Time: 5-8days
    Supply Ability: 3000units/year
    Contact Now
    Detailed Product Description
    Brand Name: Meanwell Output Power: 241.2W
    Input Voltage:: 90 ~ 305VAC Output Type: Single
    Output Voltage: 36V Output Frequency: 47-63HZ
    Output Current: 6.7A Working Temperature: -40 ~ 90°C
    Efficiency: 92.5% Dimensions: 244.2*68*38.8mm
    Keywords: Meanwell (MW) LED Power Supply

    Meanwell 240W 36V Constant Voltage LED Power Supply HLG-240H-36 for LED lighting




    Dimensions:  244.2*68*38.8mm
    Keywords:  Meanwell (MW) LED Power Supply
    Packaging Details: 12pcs per carton / CBM:0.8 / GW:14.8KG
    Delivery Time : 3-14DAYS




    Meanwell 240W 36V Constant Voltage LED Power Supply HLG-240H-36 for LED lighting


    Meanwell 240W 36V Constant Voltage LED Power Supply HLG-240H-36 for LED lighting
    Features of MeanWell (MW) Led Power Supply
    - ConstantVoltage + Constant Current mode output
    - Metal housing with class I design

    - IP67 / IP65 rating for indoor or outdoor installations
    - Function options : output adjustable via potentiometer;
    3 in 1 dimming;Timer dimming
    - Typical lifetime > 62000 hours
    - 7 years warranty

    Applications:
    - LED street lighting
    - LED high-bay lighting
    - Parking space lighting
    - LED fishing lamp
    - LED greenhouse lighting
    - Type “HL” for use in Class, Division 2 Ihazardous (Classified) location.

    QUICK VIEW
    Product Name : Meanwell (MW) LED Power Supply HLG-240H-36

    MODEL HLG-240H-12 HLG-240H-15 HLG-240H-20 HLG-240H-24 HLG-240H-30 HLG-240H-36 HLG-240H-42 HLG-240H-48 HLG-240H-54
    OUTPUT DC VOLTAGE 12V 15V 20V 24V 30V 36V 42V 48V 54V
    RATED CURRENT 16A 15A 12A 10A 8A 6.7A 5.72A 5A 4.45A
    RATED POWER 192W 225W 240W 240W 240W 241.2W 240.24W 240W 240.3W
    INPUT VOLTAGE RANGE 90-305VAC 127-431VDC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 90% 90% 91.50% 92.50% 92.50% 92.50% 92.50% 93% 93.50%
    AC CURRENT 4A /115VAC 2A/230VAC 1.2A/277VAC



    Meanwell 240W 36V Constant Voltage LED Power Supply HLG-240H-36 for LED lighting

    HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90~305VAC and offers models with different rated voltage rangingbetween 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C ~ +90°Ccase temperature under free air convection. The design of metal housing andIP67/IP65 ingress protection level allows this series to fit both indoor and outdoorapplications. HLG-240H is equipped with various function options, such asdimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

    Meanwell 240W 36V Constant Voltage LED Power Supply HLG-240H-36 for LED lighting

    FAQ



    Q1. Can I have a sample order for Meanwell (MW) LED Power Supply HLG-240H-36?

    A: Yes, we welcome sample order to test and check quality.

    Q2. What about the lead time?

    A:Sample needs 5-7 days, mass production time needs 2-3 weeks. The actual time is up to the quantity.

    Q3. Do you have any MOQ limit for Meanwell (MW) LED Power Supply HLG-240H-36 order?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for Meanwell (MW) LED Power Supply HLG-240H-36?

    A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

    Q6. Is it OK to use my own package?

    A: Yes.Normally we offer the white box without any printing.If you have the deisgn of box,we can help you produce in China and pack it.
