Inflatable 400W Lighting Tower Portable Neutral / Cool White Columus Tower

Inflatable 400W Lighting Tower Portable Neutral / Cool White Columus Tower

Inflatable 400W Lighting Tower Portable Neutral / Cool White Columus Tower

Product Details:

Place of Origin: China
Brand Name: HAFE
Certification: CE
Model Number: Columus MH-400

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: Negotiable
Packaging Details: transport case or carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000units/year
Contact Now
Detailed Product Description
Series: Columus Series Inflat: Build-in-fan
Lighting Source: 400W Metal Halide Lamp Luminous Flux(L/M): 36000
Balloon Material: Nylon Taffta, PVC, PE Etc Option1: HMI Lighting
Option2: Different Packing Hicase For Your Choice Option3: Column Size Can Be 2.5-4.8m

Inflatable 400W Lighting Tower portableNeutral / Cool White Columus Tower



1. Inflatable Light Tower description:



Main features

We have several lines of inflatable light towers for portable emergency lighting and illumination for highway construction, traffic control, EMS scenes, and for attractive and informative lighting at public and private events.Portable, powerful , can easily be carried and set up by one person in minutes.

Suggested minimum illumination requirements are presented as below. Typical night work activities are assigned to one of three lighting requirement categories:


Category I Minimum illumination of 54 lx
Category II Minimum illumination of 108 lx
Category III Minimum illumination of 216 lx



The National Cooperative Highway Research Program (NCHRP) Report 498: Illumination Guidelines for Nighttime Highway Work

Suggested minimum illumination requirements are presented below.

Level I
illuminance is important in areas where the work crew is in motion, moving from spot to spot. This level of
illuminance is appropriate for tasks requiring low accuracy, involving slow-moving equipment, and where there are
large objects to be seen.
Level II
illuminance is recommended for areas on or around construction equipment to provide a safer environment
for the workers operating the equipment, allowing them to perform tasks that require a moderate level of accuracy, as
described in Table 1 above.
Level III
illuminance is appropriate for those tasks that require a greater level of visual acuity or for tasks with a
higher level of difficulty.



2. Technical parameters:



    400w 120-230 V AC 575w 120-230 V AC
Lighted area > 1lux / 0.1fc m²/ sq.ft. 430 / 1,473 610 / 1,525
Lighted area > 10 lux / 1fc m²/ sq.ft. 1,075 / 3,683 1,525 / 754
Maximum lumen lm 36,000 49,000
Color temperature °K 4200 6500



3. Product Dimension:

1 x 400w metal halide

4M height column



4. Installation:

 mounted on the tripod



5. General Feature:

The system consists of inbuilt genet of 1.2KVA, two blowers, 400W metal halide lamp. First the user has to switch on the genset and then blowers to inflate the cloth at a height of 4.5 meters from the ground level. Further we switch on the lamp which illuminates an area upto 10,000 Square meters.



AdvantagesColumus MH400w,

120/230V AC- 120V/208V/240V/277V AC (alternative current)

- lamps - metal halide

- works on grid power 120V/60Hz in North America or 230V/50Hz rest of the world

- Quick and easy set-up



Columus HMI575,

120/230V AC- 120 / 230 V AC (alternative current)

- lamps - HMI

- works on grid power 120V/60Hz in North America or 230V/50Hz rest of the world

- Quick and easy set-up




6. Package:
HIcase Packing


7. Shiping:
Normally, the goods will be shipping by Sea, by air or by DHL according to customer's request

1) Strong and professional package Hicase for safety transportation.
2) Clear label Item show what is product in the cartons, including watts, CCT, quantity,etc.


8. Certification:

CE, ISO9001,ROHS


9. FAQ:
What are your main products?
Our main products are Events Balloon Lighting, Inflatable Light Tower ,rescue lighting , Construction and Worksite Lighting ,Emergency and Safety Lighting and so on, OEM are welcome.

What is the location of your company?
Our company is located in Wuxi city, Jiangsu province in China, near the biggest sea ports of China Shanghai port, about 3 hours by car. If you would like to have a visit, welcome.

What is your MOQ?
Our MOQ is usually 1PCS, first trial order can be to be discussed.

What is the shipping port?
We ship the goods via DHL, TNT Fedex.

What is your delivery time?
The time of delivery is about 10~20days after we receive the deposit.

What are your payment terms?
We accept 30% T/T in advance, or paypal, Western Union, to be discussed.

What is your sample time?
Usually we will take5-7 days to make the samples.



TAG:

Events Space Lighting

Events decoration balloon lighting

Events outdoor illuminate lighting

Lighting cone

Lighting decoration

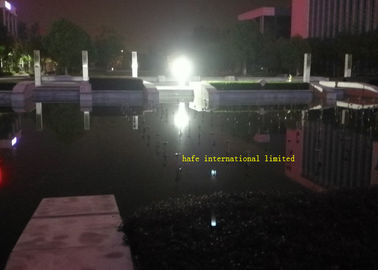

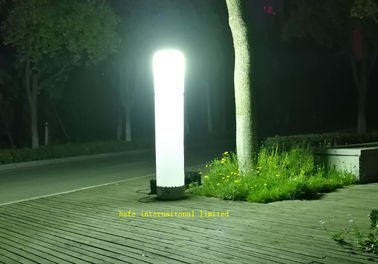

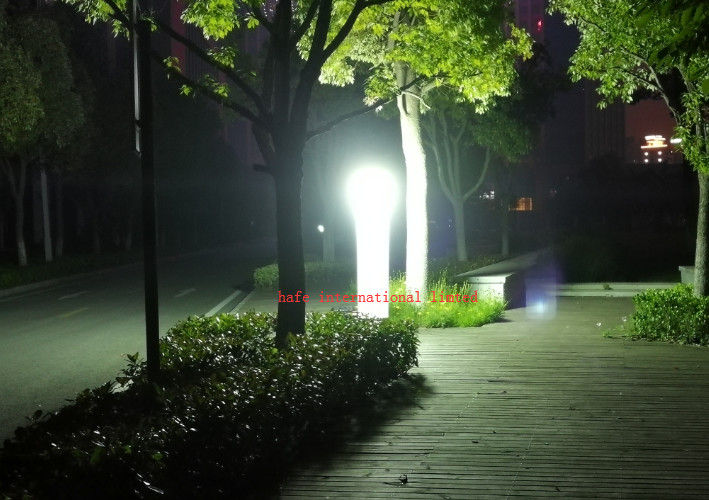

10. Lighting Effect & Application:

Inflatable 400W Lighting Tower Portable Neutral / Cool White Columus Tower
Inflatable 400W Lighting Tower Portable Neutral / Cool White Columus Tower
