3.3x3.3x1.4m 960W RGBW LED Mattress With International Electronic Ballasts

Basic Information
Place of Origin: CHINA
Brand Name: HAFE
Certification: CE
Model Number: Artemis
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton and Hicase packing
Delivery Time: 10-15working days
Payment Terms: T/T, L/C
Supply Ability: 3000units /year
Detail Information
MAX Watt: LED1000W Color: RGBW
Approx. Max. Output: 79,200lm Ballasts: Can Use ARRI Ballasts Or Hafe Ballasts
Dimmer: Manual Dimmer Through 4 Separate Knob DMX: DMX512 Control Feature
Operarion Height: 4~10m Helilum: 15m3 Helilum Needed
High Light:

960W RGBW LED Mattress

,

3.3x3.3x1.4m RGBW LED Mattress


Product Description

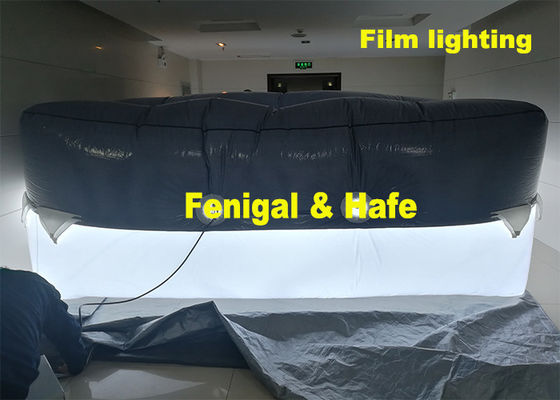

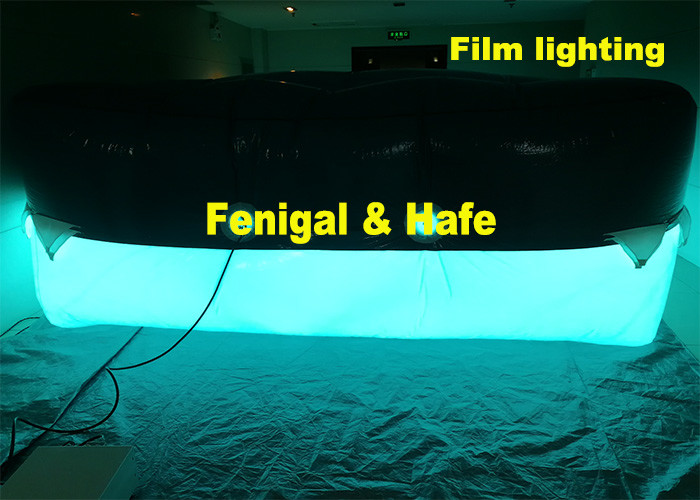

3.3x3.3x1.4m 960W RGBW LED Matress With International Electronic Ballasts





The lighting balloons are widely used in set lighting (fill or main) as a high quality softened light source with its high pwer high output and unmatchable performance. The lighting balloons are able to create amazing lighting that a conventional lighting could unsatisfactorily to deliver.


At a location where rigging is not possible or practical, a large area of diffused man-made soft light needed, lighting balloons may be a better choice.


The name of lighting balloons are "Artemis".Wuxi Fenigal & Science and Technology has an independent R&D process for the material, balloon fdesign and abrications.


And we started these lighting balloons for film and tv industy from 2017. And we hope our lighting balloons could bring you joys and successes.

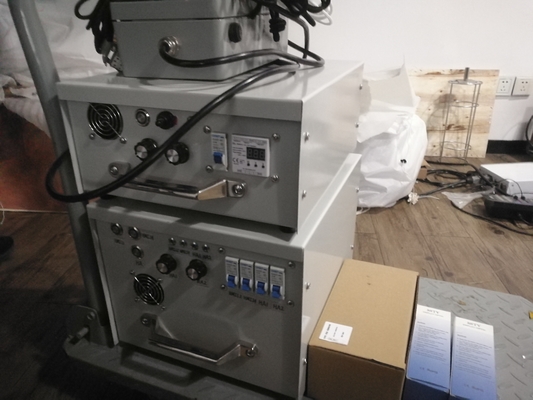

Daylight ranges are compatible with international brand electronic ballasts. Economic flicke-free EBs are also available.



Our daylight range lighting balloons are built in such a way that they could work with your Arri electronic ballasts to form a set light wanted. Our veam connector receptable box gives it a convenience for different comnbinations of power.



EB pictures at the courtesy of ARR:575/1200W 1200/1800W 2.5/4kW


POWER GEMS Also compatible to Power Gems electronic ballast from 575 till 4000w

matress

  • This matress is both employed indoor and outdoor. It can be used horizontally or tilted depending on your set’s layout
  • Equipped with an internal reflector, velcro all around for accessories such as skirts, and multiple rigging points
  • sizes can be customize
  • It is the only air-born diffusion that needs neither suspension nor ground support
  • Versatile
  • Fast to operate
    Less intrusive

lighting data

Light source newest generation LED

Colour temperature from 2,700 K to 6,500 K

Average efficiency at 4,400 K 93 lm/W

Nominal power 850 W/1000WLED

Regulation type constant current

Diffusion angle 120° (chart 1.)

CRI - colour rendering index > 95 (chart 2.)

Flicker free 31 kHz

Dimmer 0%-100%

Potentiometer - colour temperature – intensity

In/out DMX connector 5 pin

Remote Device Management (RDM) DMX setup

Noise level 0 dB

LED lifetime* 50,000 h

Set up time 15 min

Inflation type external pump *

power supply Max. entry power 1000 W

Balloon to power supply cable length 10 m I 30 ft

Connector to power supply cable length 2 m I 6 ft

Noise level (remote power supply) 23 dB

Input voltage 90-260 V AC

Input frequency 50-60 Hz

Output voltage 48 V DC

Temperature range for optimal use -5°C / +40°C

dimensions and packaging

Balloon shape sphere

Balloon dimensions 160 cm I 5 ft in diameter

Weight of the balloon 12 kg I 27 lbs

Box contents full set lighting balloon with power supply, control box and inflation pump





Sphere - Ellipse: HMI
Unit Shape Lamps / Socket Dims Max Height Helium Techs Set Up Time Cable Length Max Wind Speed
tanks
(291 cft)
1,150 W HMI Sphere | Ellipse 2x 575 W / G22 6.5’ | 6.5’x8’ 35’ 1 1 30 min 45’ 10 mph
2.4 KW HMI Sphere | Ellipse 2x 1.2 KW / G38 8’ | 8’x10’ 35’ 2 1 35 min 55’ 15 mph
2.4 KW HMI Sphere | Ellipse 2x 1.2 KW / G38 10’ | 10’x12’ 45’ 3 1 35 min 55’ 15 mph
4.8 KW HMI Sphere | Ellipse 4x 1.2 KW / G38 12’ | 12’x14’ 65’ 5 1 45 min 100’ 20 mph
5 KW HMI Ellipse 2x 2.5 KW / G38 14’x16’ 75’ 8 2 60 min 100’ 25 mph
8 KW HMI Ellipse 2x 4 KW / G38 14’x16’ 75’ 8 2 60 min 100’ 25 mph
10 KW HMI Sphere 4x 2.5 KW / G38 16’5 80’ 10 2 75 min 100’ 25 mph
16 KW HMI Sphere 4x 4 KW / G38 16’5 80’ 10 2 75 min 100’ 25 mph

ACCESSORIES:
Skirts
Reflectors

Sphere - Ellipse: Tungsten
Unit Shape Lamps / Socket Dims Max Height Helium Techs Set Up Time Cable Length Max Wind Speed
tanks
(291 cft)
4 KW Tungsten Sphere | Ellipse 4x 1 KW / G6.35 6.5’ | 6’x8’ 40’ 1 1 30 min 45’ 10 mph
4 KW Tungsten Sphere | Ellipse 4x 1 KW / G6.35 8’ | 8’x10’ 45’ 2 1 30 min 45’ 15 mph
5 KW Tungsten Sphere | Ellipse 2x 2.5 KW / G38 8’ | 8’x10’ 40’ 2 1 30 min 45’ 15 mph
5 KW Tungsten Sphere | Ellipse 2x 2.5 KW / G38 10’ | 10’x12’ 45’ 3 1 30 min 45’ 15 mph
8 KW Tungsten Sphere | Ellipse 8x 1 KW / G6.35 12’ | 12’x16’ 70’ 5 1 50 min 100’ 20 mph
10 KW Tungsten Sphere | Ellipse 2x 5 KW / G38 12’ | 12’x16’ 70’ 5 1 50 min 100’ 20 mph
15 KW Tungsten Sphere | Ellipse 2x 5 KW 16’5 80’ 10 2 70 min 120’ 25 mph
+ 2x 2.5 KW / G38
20 KW Tungsten Sphere | Ellipse 4x 5 KW / G38 16’5 80’ 10 2 70 min 120’ 25 mph


Sphere - Ellipse: Hybrid
Unit Shape Lamps / Socket Dims Max Height Helium Techs Set Up Time Cable Length Max Wind Speed
tanks
(291 cft)
3.7 KW Sphere | Ellipse 1x 2.5 KW 8’ | 8’x10’ 35’ 2 1 40 min 45’ 15 mph
Hybrid + 1x 1.2 KW G38
3.7 KW Sphere | Ellipse 1x 2.5 KW 10’ | 10’x12’ 45’ 3 1 40 min 45’ 15 mph
Hybrid + 1x 1.2 KW G38
7.4 KW Sphere | Ellipse 2x 2.5 KW 12’ | 12’x14’ 60’ 5 1 55 min 100’ 20 mph
Hybrid + 2x 1.2 KW G38
8.4 KW Ellipse 6x 1 KW 8.8’x12’ 40’ 4 1 40 min 55’ 15 mph
Hybrid + 2 x 1.2 KW G6.35 + G38
9.6 KW Ellipse 6x 1 KW 12’x14’ 50’ 5 1 55 min 100’ 20 mph
Hybrid + 3x 1.2 KW G6.35 + G38
18 KW Ellipse 6x 1 KW 14’ x 20.6’ 80’ 12 2 75 min 100’ 20 mph
Hybrid + 3x 4 KW G6.35 + G38
18 KW Sphere 2x 5 KW 16.5’ 80’ 10 2 75 min 100’ 20 mph
Hybrid + 2x 4 KW G38
19 KW Ellipse 6x 1 KW 14’ x 20.6’ 80’ 12 2 75 min 100’ 20 mph
Hybrid + 1x 5 KW
  + 2x 4 KW /
  G6.35 + G38
20 KW Ellipse 8x 1 KW 14’ x 20.6’ 80’ 12 2 75 min 100’ 20 mph
Hybrid + 3x 4 KW
  G6.35 + G38


Sphere - Ellipse: Sodium / Mercury
Unit Shape Lamps / Socket Dims Max Height Helium Techs Set Up Time Cable Length Max Wind Speed
tanks
(291 cft)
4 KW Sphere 4x 1 KW / 14’ 60’ 5 1 65 min 100’ 15 mph
Sodium / Mercury Mogul E39
