| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HAFE |
| Certification: | CE |
| Model Number: | Artemis™ |
| Minimum Order Quantity: | 1units |
| Price: | Negotiation |
| Packaging Details: | Carton and Hicase Packing |
| Delivery Time: | 5-18working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000units/year |
| Type: | HMI & Tungsten Hybrid | Ellipse Shape: | 3.2KW-16KW |
|---|---|---|---|
| Sphere Shape: | 8.8KW-36KW | Tube Shape: | 6.4KW-26KW |
| Cube Shape: | 3.2KW-9KW | Option1: | Many Lighting Source Are In Choice |
| Option2: | Many Shape In Choice | Color: | Black+White |
| High Light: | special film lighting balloon,HMI Film Lighting Balloon |
||

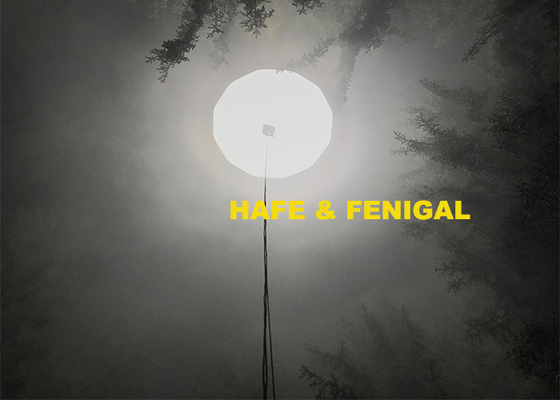

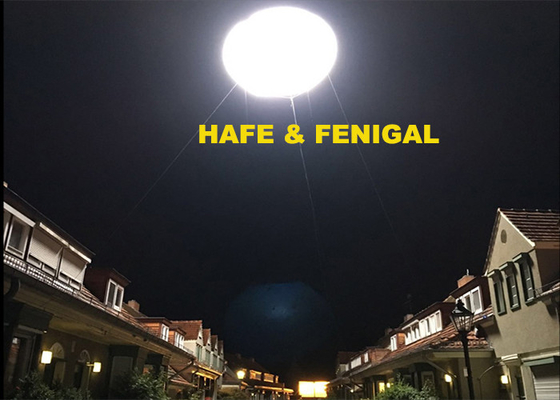

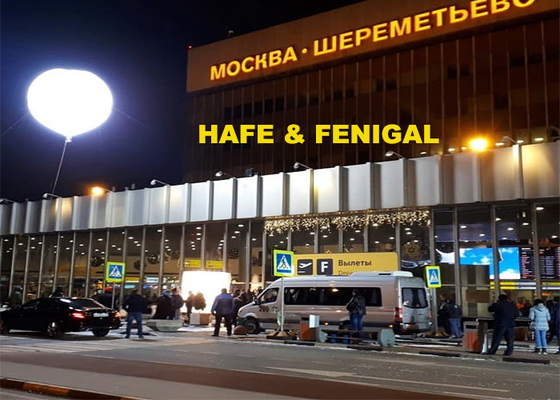

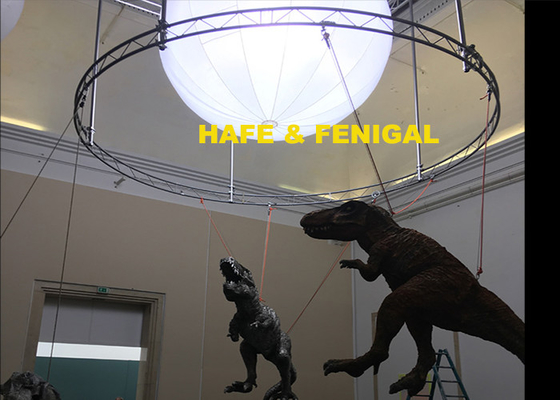

Special HMI & Tungsten Hybrid Film Lighting Balloon for Scene Change In Same Place
Artemis™ has below varied versions:
· Artemis - spherical version; dia. 2.5m~5m (helium filling);
· Artemis - ellipse versionn; 2.2x3m, 3.3x4.4m (helium filling);
· Artemis - cube version; 2.2m~5m (helium filling);
· Artemis - tube version; 1.8x5.5m ~ 2.5x10m (helium filling);
· Artemis of above Sphere/Ellipse/Cube/Tube by air-filling for tripod stand, hanging up, riggin applications
· Artemis halo (underway)
· Artemis - cloud (underway)
Besides, Artemis could also be classified into below categories on light source and control varions:
· Artemis HMI - Day Light (D) 575w~10,000w;
· Artemis Tungsten halogen - Warm White (W) 2,000~16,000w;
· Artemis Hybrid - (Hb) customized;
· Artemis metal halide/sodium - (MH, Sd) 400w~2,000w;
· Artemis LED white / LED RGB - (L, Lc) customized
| Sphere - Ellipse: HMI | ||||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed | |
| tanks | ||||||||||
| (291 cft) | ||||||||||
| 1,150 W HMI | Sphere | Ellipse | 2x 575 W / G22 | 6.5’ | 6.5’x8’ | 35’ | 1 | 1 | 30 min | 45’ | 10 mph | |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 8’ | 8’x10’ | 35’ | 2 | 1 | 35 min | 55’ | 15 mph | |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 35 min | 55’ | 15 mph | |
| 4.8 KW HMI | Sphere | Ellipse | 4x 1.2 KW / G38 | 12’ | 12’x14’ | 65’ | 5 | 1 | 45 min | 100’ | 20 mph | |
| 5 KW HMI | Ellipse | 2x 2.5 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph | |
| 8 KW HMI | Ellipse | 2x 4 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph | |
| 10 KW HMI | Sphere | 4x 2.5 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph | |
| 16 KW HMI | Sphere | 4x 4 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph | |
| ACCESSORIES: | Skirts | Reflectors | ||||||||
| Sphere - Ellipse: Tungsten | ||||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed | |
| tanks | ||||||||||
| (291 cft) | ||||||||||
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 6.5’ | 6’x8’ | 40’ | 1 | 1 | 30 min | 45’ | 10 mph | |
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 8’ | 8’x10’ | 45’ | 2 | 1 | 30 min | 45’ | 15 mph | |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 8’ | 8’x10’ | 40’ | 2 | 1 | 30 min | 45’ | 15 mph | |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 30 min | 45’ | 15 mph | |
| 8 KW Tungsten | Sphere | Ellipse | 8x 1 KW / G6.35 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph | |
| 10 KW Tungsten | Sphere | Ellipse | 2x 5 KW / G38 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph | |
| 15 KW Tungsten | Sphere | Ellipse | 2x 5 KW | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph | |
| + 2x 2.5 KW / G38 | ||||||||||
| 20 KW Tungsten | Sphere | Ellipse | 4x 5 KW / G38 | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph | |
| Sphere - Ellipse: Hybrid | ||||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed | |
| tanks | ||||||||||
| (291 cft) | ||||||||||
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 8’ | 8’x10’ | 35’ | 2 | 1 | 40 min | 45’ | 15 mph | |
| Hybrid | + 1x 1.2 KW G38 | |||||||||
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 10’ | 10’x12’ | 45’ | 3 | 1 | 40 min | 45’ | 15 mph | |
| Hybrid | + 1x 1.2 KW G38 | |||||||||
| 7.4 KW | Sphere | Ellipse | 2x 2.5 KW | 12’ | 12’x14’ | 60’ | 5 | 1 | 55 min | 100’ | 20 mph | |
| Hybrid | + 2x 1.2 KW G38 | |||||||||
| 8.4 KW | Ellipse | 6x 1 KW | 8.8’x12’ | 40’ | 4 | 1 | 40 min | 55’ | 15 mph | |
| Hybrid | + 2 x 1.2 KW G6.35 + G38 | |||||||||
| 9.6 KW | Ellipse | 6x 1 KW | 12’x14’ | 50’ | 5 | 1 | 55 min | 100’ | 20 mph | |
| Hybrid | + 3x 1.2 KW G6.35 + G38 | |||||||||
| 18 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph | |
| Hybrid | + 3x 4 KW G6.35 + G38 | |||||||||
| 18 KW | Sphere | 2x 5 KW | 16.5’ | 80’ | 10 | 2 | 75 min | 100’ | 20 mph | |
| Hybrid | + 2x 4 KW G38 | |||||||||
| 19 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph | |
| Hybrid | + 1x 5 KW | |||||||||
| + 2x 4 KW / | ||||||||||
| G6.35 + G38 | ||||||||||
| 20 KW | Ellipse | 8x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph | |
| Hybrid | + 3x 4 KW | |||||||||
| G6.35 + G38 | ||||||||||
| Sphere - Ellipse: Sodium / Mercury | ||||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed | |
| tanks | ||||||||||
| (291 cft) | ||||||||||
| 4 KW | Sphere | 4x 1 KW / | 14’ | 60’ | 5 | 1 | 65 min | 100’ | 15 mph | |
| Sodium / Mercury | Mogul E39 | |||||||||
