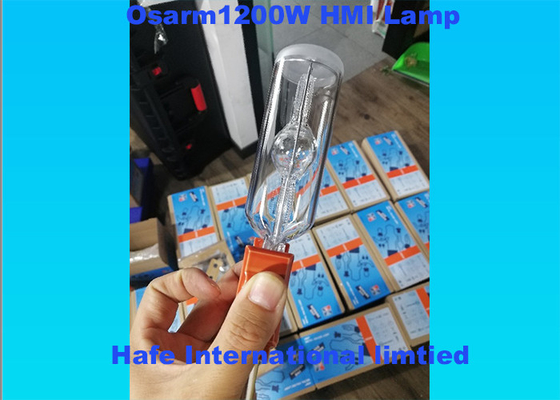

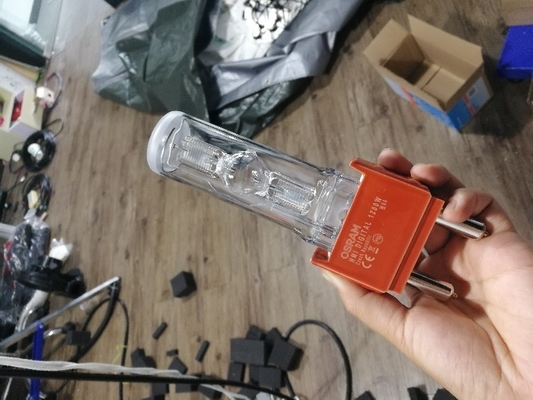

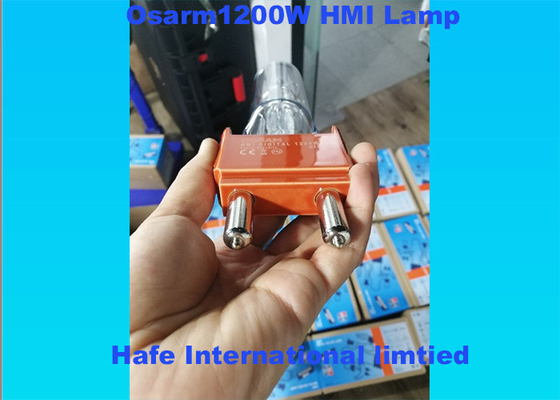

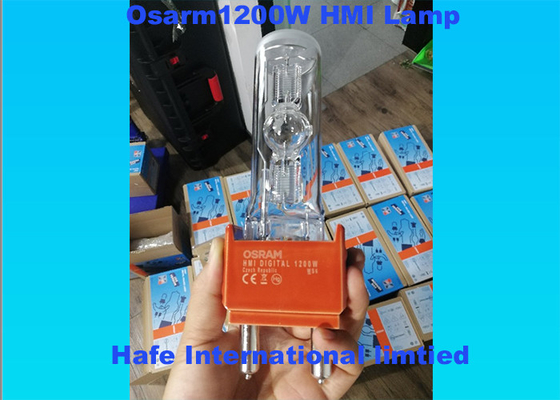

OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio

OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio

    • OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio
    • OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio
    • OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio
    • OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio
  • OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio

    Product Details:

    Place of Origin: Germany
    Brand Name: OSARM
    Certification: CE
    Model Number: OSRAM HMI 1200W/DXS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Nogotiation
    Packaging Details: Carton packing
    Delivery Time: 7-10 working days
    Payment Terms: T/T
    Supply Ability: 3000units/year
    Contact Now
    Detailed Product Description
    Base: G38 LAMP Watt: 1200W
    Type: Single-ended Use Age: Film, TV And Video Production And Studio
    Bulb Shape: T40 Shipping: China



    OSRAM 1200W HMI Lamp Single-ended Used for Film, TV and Video Production and Studio



    OSRAM HMI single-end lamp family continues to offer the best in HMI quality. In addition to the DIGITAL and STUDIO offering these single end HMI lamps offer consistent 6000K color and >90 CRI. HMI Lamps = 6000W are also designed with a unique round moly-foil that more evenly distributes heat and current, providing lamp life increases on average of 25%. Lamps designated as EVENT have been designed specifically for auto shows and other large-scale events. Identifiable by their black base, these lamps have improved heat resistance for high thermal requirements and a tighter range of color temperature for consistent color and brightness. They also incorporate the UV-Stop technology.

    Product features and benefits.


    High intensity light providing true color performance with a CRI>90
    Longer life with heat dissipating round moly-foil design on lamps ≥ 6000W
    Mechanically robust with eXtreme Seal (XS) technology, up to 450°C at the pinch seal​
    Capable of hot restrike ignition
    High color stability with average changes in color temperature during lamp life only 1°K/hr
    Dimmable down to 40% with stable color using many electronic ballasts
    High energy efficiency providing up to 100 LPW​


    HMI EVENT types offer enhanced brightness and color control as well as UV-stop technology
    Areas of application
    Studio, TV and film
    Professional Photography
    Solar Simulation
    reduce



    roduct Number 53975
    Product Name HMIEVENT1200WSELUVS 1/CS 1/SKU
    Ordering Abbreviation HMI EVENT 1200W/SEL/UVS
    Brand Name OSRAM
    Family Brand Name HMI EVENT
    General Description 1200 watt, metal halide, G22 base, single end, 6000K, HMI, UV Stop,
    EVENT
    Application FILM, TV, STUDIO & VIDEO PRODUCTION. CAR SHOWS.
    Product Remark
    • SE=Single Ended
    • Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.
    • Designed to approximate daylight color temperature (5600K to 6200K) inside of a fixture. Note that color temperature will vary based on the ballast used and its operating frequency.

    Electrical data

    Nominal Wattage 1200 W
    Nominal Voltage 100 V
    Current (A) 13.8 A
    Type of Current AC

    Light technical data

    Luminous Flux 110000 lm
    Luminous Efficacy (lm/W) 92 lm/W
    Light Center Length - LCL (mm) 107 mm
    Color Temperature 6000 K
    Average Rated Life 1000 h

    Physical attributes

    Base G38 Mogul Bipost
    Bulb Shape T40
    Maximum Overall Length (mm) 200 mm
    Length l (mm) 200 mm
    Length l max. (mm) 200 mm
    Distance a (mm) 107 mm
    Electrode Gap - cold (mm) 10 mm

    Additional product data

    Operating Position ANY
    Maximum Base Temperature (ºC) 450 C
    Cooling CONVECTION
    Hot Restart YES

    OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And StudioOSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio
