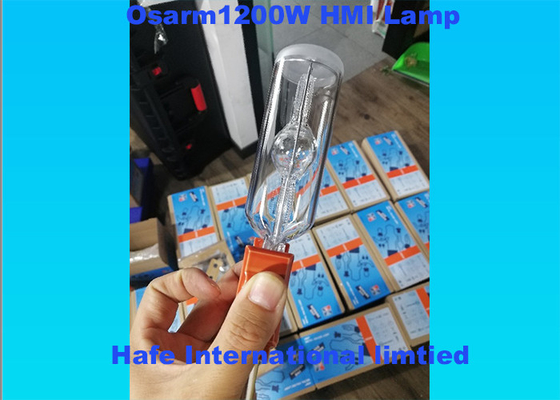

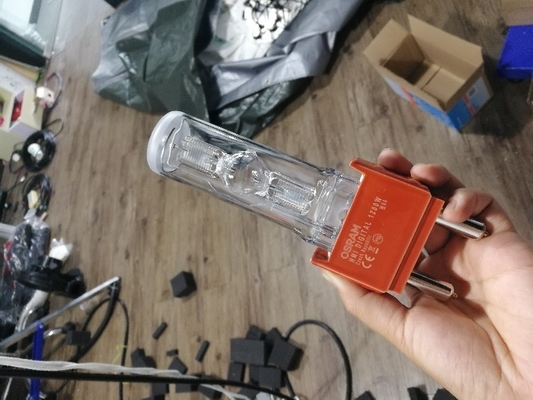

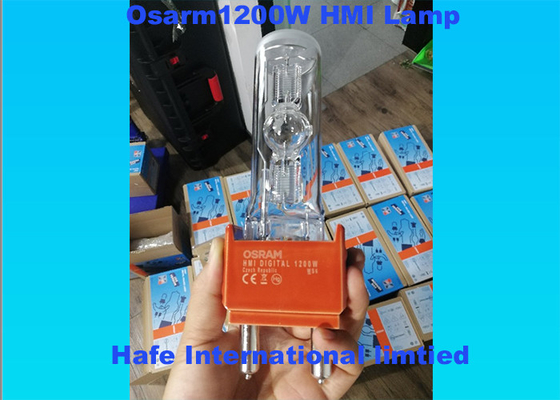

OSRAM 1200W HMI Lamp Single Ended Use For Film TV And Video Production And Studio

Basic Information
Place of Origin: Germany
Brand Name: OSARM
Certification: CE
Model Number: OSRAM HMI 1200W/DXS
Minimum Order Quantity: 1 unit
Price: Nogotiation
Packaging Details: Carton packing
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 3000units/year
Detail Information
Base: G38 LAMP Watt: 1200W
Type: Single-ended Use Age: Film, TV And Video Production And Studio
Bulb Shape: T40 Shipping: China
High Light:

inflatable camping lantern

,

led lights for inflatables


Product Description



OSRAM 1200W HMI Lamp Single-ended Used for Film, TV and Video Production and Studio



OSRAM HMI single-end lamp family continues to offer the best in HMI quality. In addition to the DIGITAL and STUDIO offering these single end HMI lamps offer consistent 6000K color and >90 CRI. HMI Lamps = 6000W are also designed with a unique round moly-foil that more evenly distributes heat and current, providing lamp life increases on average of 25%. Lamps designated as EVENT have been designed specifically for auto shows and other large-scale events. Identifiable by their black base, these lamps have improved heat resistance for high thermal requirements and a tighter range of color temperature for consistent color and brightness. They also incorporate the UV-Stop technology.

Product features and benefits.


High intensity light providing true color performance with a CRI>90
Longer life with heat dissipating round moly-foil design on lamps ≥ 6000W
Mechanically robust with eXtreme Seal (XS) technology, up to 450°C at the pinch seal​
Capable of hot restrike ignition
High color stability with average changes in color temperature during lamp life only 1°K/hr
Dimmable down to 40% with stable color using many electronic ballasts
High energy efficiency providing up to 100 LPW​


HMI EVENT types offer enhanced brightness and color control as well as UV-stop technology
Areas of application
Studio, TV and film
Professional Photography
Solar Simulation
reduce



roduct Number 53975
Product Name HMIEVENT1200WSELUVS 1/CS 1/SKU
Ordering Abbreviation HMI EVENT 1200W/SEL/UVS
Brand Name OSRAM
Family Brand Name HMI EVENT
General Description 1200 watt, metal halide, G22 base, single end, 6000K, HMI, UV Stop,
EVENT
Application FILM, TV, STUDIO & VIDEO PRODUCTION. CAR SHOWS.
Product Remark
  • SE=Single Ended
  • Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.
  • Designed to approximate daylight color temperature (5600K to 6200K) inside of a fixture. Note that color temperature will vary based on the ballast used and its operating frequency.

Electrical data

Nominal Wattage 1200 W
Nominal Voltage 100 V
Current (A) 13.8 A
Type of Current AC

Light technical data

Luminous Flux 110000 lm
Luminous Efficacy (lm/W) 92 lm/W
Light Center Length - LCL (mm) 107 mm
Color Temperature 6000 K
Average Rated Life 1000 h

Physical attributes

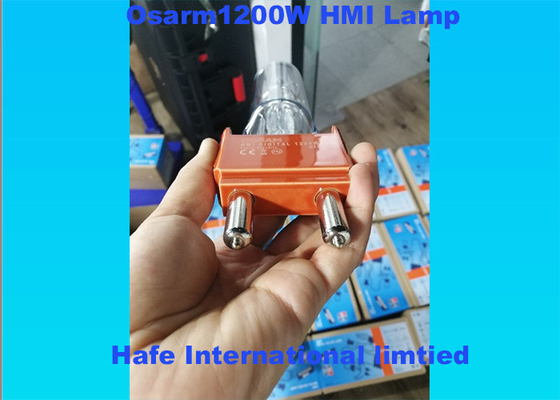

Base G38 Mogul Bipost
Bulb Shape T40
Maximum Overall Length (mm) 200 mm
Length l (mm) 200 mm
Length l max. (mm) 200 mm
Distance a (mm) 107 mm
Electrode Gap - cold (mm) 10 mm

Additional product data

Operating Position ANY
Maximum Base Temperature (ºC) 450 C
Cooling CONVECTION
Hot Restart YES
