Balloon: | 3.4m Diameter | Balloon Size: | Ø 11.2ft, H 8.5ft |
---|---|---|---|
Lamp: | 1440w LED | L/m: | 158,400lm |
Series: | Artemis | Option: | Ellipse |
Helium Volume: | 16m3 | Power/Socket: | 120/230v |
High Light: | 3.4m Film Lighting Balloon,11.2ft Film Lighting Balloon,CE Film Lighting Balloon |

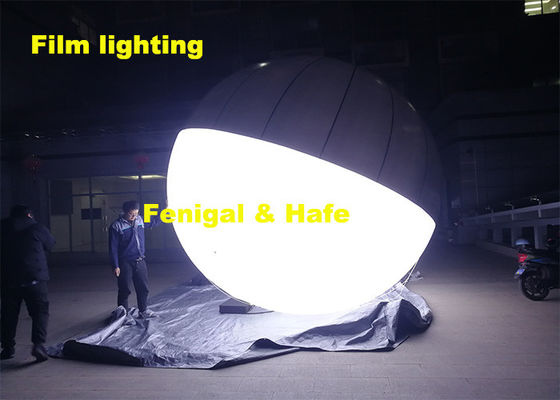

3.4m 11.2ft Diameter Artemis Ellipse Film Lighting Balloon Sphere
The lighting balloons are widely used in set lighting (fill or main) as a high quality softened light source with its high pwer high output and unmatchable performance. The lighting balloons are able to create amazing lighting that a conventional lighting could unsatisfactorily to deliver.
At a location where rigging is not possible or practical, a large area of diffused man-made soft light needed, lighting balloons may be a better choice.
Artemis™ has below varied versions:
· Artemis - spherical version; dia. 2.5m~5m (helium filling);
· Artemis - ellipse versionn; 2.2x3m, 3.3x4.4m (helium filling);
· Artemis - cube version; 2.2m~5m (helium filling);
· Artemis - tube version; 1.8x5.5m ~ 2.5x10m (helium filling);
· Artemis of above Sphere/Ellipse/Cube/Tube by air-filling for tripod stand, hanging up, riggin applications
· Artemis halo (underway)
· Artemis - cloud (underway)
Besides, Artemis could also be classified into below categories on light source and control varions:
· Artemis HMI - Day Light (D) 575w~10,000w;
· Artemis Tungsten halogen - Warm White (W) 2,000~16,000w;
· Artemis Hybrid - (Hb) customized;
· Artemis metal halide/sodium - (MH, Sd) 400w~2,000w;
· Artemis LED white / LED RGB - (L, Lc) customized
Sphere - Ellipse: HMI | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
1,150 W HMI | Sphere | Ellipse | 2x 575 W / G22 | 6.5’ | 6.5’x8’ | 35’ | 1 | 1 | 30 min | 45’ | 10 mph |
2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 8’ | 8’x10’ | 35’ | 2 | 1 | 35 min | 55’ | 15 mph |
2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 35 min | 55’ | 15 mph |
4.8 KW HMI | Sphere | Ellipse | 4x 1.2 KW / G38 | 12’ | 12’x14’ | 65’ | 5 | 1 | 45 min | 100’ | 20 mph |
5 KW HMI | Ellipse | 2x 2.5 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
8 KW HMI | Ellipse | 2x 4 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
10 KW HMI | Sphere | 4x 2.5 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
16 KW HMI | Sphere | 4x 4 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
ACCESSORIES: | Skirts | Reflectors | |||||||
Sphere - Ellipse: Tungsten | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 6.5’ | 6’x8’ | 40’ | 1 | 1 | 30 min | 45’ | 10 mph |
4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 8’ | 8’x10’ | 45’ | 2 | 1 | 30 min | 45’ | 15 mph |
5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 8’ | 8’x10’ | 40’ | 2 | 1 | 30 min | 45’ | 15 mph |
5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 30 min | 45’ | 15 mph |
8 KW Tungsten | Sphere | Ellipse | 8x 1 KW / G6.35 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
10 KW Tungsten | Sphere | Ellipse | 2x 5 KW / G38 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
15 KW Tungsten | Sphere | Ellipse | 2x 5 KW | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
+ 2x 2.5 KW / G38 | |||||||||
20 KW Tungsten | Sphere | Ellipse | 4x 5 KW / G38 | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
Sphere - Ellipse: Hybrid | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 8’ | 8’x10’ | 35’ | 2 | 1 | 40 min | 45’ | 15 mph |
Hybrid | + 1x 1.2 KW G38 | ||||||||
3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 10’ | 10’x12’ | 45’ | 3 | 1 | 40 min | 45’ | 15 mph |
Hybrid | + 1x 1.2 KW G38 | ||||||||
7.4 KW | Sphere | Ellipse | 2x 2.5 KW | 12’ | 12’x14’ | 60’ | 5 | 1 | 55 min | 100’ | 20 mph |
Hybrid | + 2x 1.2 KW G38 | ||||||||
8.4 KW | Ellipse | 6x 1 KW | 8.8’x12’ | 40’ | 4 | 1 | 40 min | 55’ | 15 mph |
Hybrid | + 2 x 1.2 KW G6.35 + G38 | ||||||||
9.6 KW | Ellipse | 6x 1 KW | 12’x14’ | 50’ | 5 | 1 | 55 min | 100’ | 20 mph |
Hybrid | + 3x 1.2 KW G6.35 + G38 | ||||||||
18 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 3x 4 KW G6.35 + G38 | ||||||||
18 KW | Sphere | 2x 5 KW | 16.5’ | 80’ | 10 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 2x 4 KW G38 | ||||||||
19 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 1x 5 KW | ||||||||
+ 2x 4 KW / | |||||||||
G6.35 + G38 | |||||||||
20 KW | Ellipse | 8x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 3x 4 KW | ||||||||
G6.35 + G38 | |||||||||
Sphere - Ellipse: Sodium / Mercury | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
4 KW | Sphere | 4x 1 KW / | 14’ | 60’ | 5 | 1 | 65 min | 100’ | 15 mph |
Sodium / Mercury | Mogul E39 |
