| Place of Origin: | China |
|---|---|
| Brand Name: | HAFE |
| Certification: | CE |
| Model Number: | Artemis |
| Minimum Order Quantity: | 1unit |
| Price: | Negotiation |
| Packaging Details: | Carton and Hicase Packing |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000units/year |
| Series: | Artemis | Lamp: | LED |
|---|---|---|---|
| Watt: | 1440W | Color Temperature: | 2600~5600k |
| Function: | Dimmable | Details: | (480w/2600k + 960w/5600k Dimmable) |
| Illumination: | 158 400lm | Dimension: | Ø 3.4m H 2.6m |
| High Light: | dimmable film lighting balloon,1440w film lighting balloon,ellipse film lighting balloon |
||

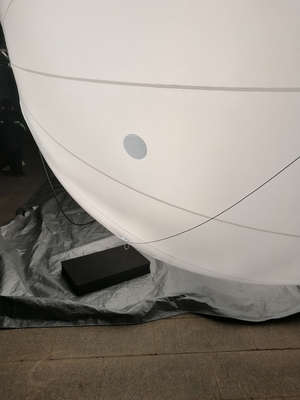

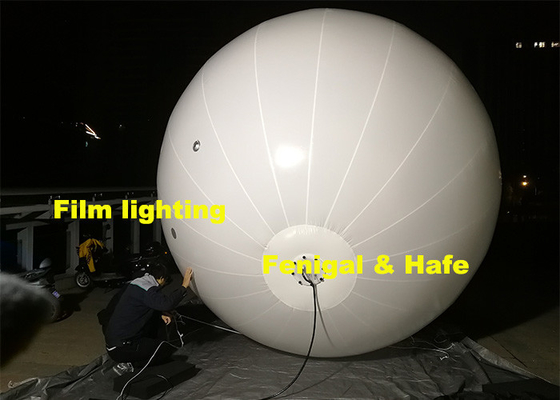

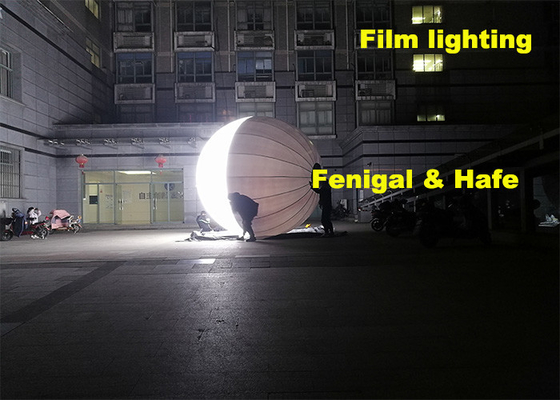

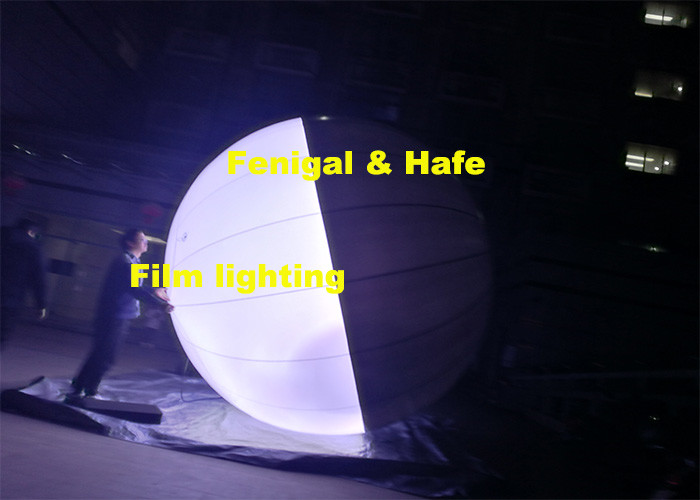

Ellipse Film Lighting Balloon LED 1440W (480w/2600k + 960w/5600k) Dimmable
A lighting balloon is a diffused lighting set, made of special fabric good for both air and helium retention when built in tight sealing structure namely in a certain shape i.e. ellipse, sphere, tube, cube, pad or mattress.
FUNCTIONS
1) setting illumination 2) fill-in lighting 3) main illumination of diffused soft light
APPLICATIONS
1) Film setting & scenes
2) TV studio
3) Photographic studio
4) Event scene with film or TV set
5) Entertainment
6) Special project
FEATURED PRODUCTS
· Artemis sphereD300 - helium/air filled; 2,400w HMI, 220,000 lm, sphere in 3m/9.8ft diameter;
· Artemis cubeD300 - helium/air filled; 2,400w HMI, 220,000 lm, cube in 3x3x3m;
· Artemis tubeD1855 - helium/air filled; 2,400w HMI, 220,000 lm, tube in dia.1.8m x L5.5m;
· Artemis tubeD25100 - helium/air filled; 10,000w HMI, 1,000,000 lm, tube in dia.2.5m x L10m;
Option:
· Multiple combinations are now available to light your sets, fitting your needs
· The mix between different lighting sources: Tungsten, Daylight, Sodium and Mercury
· From 2,200 K to 5,600 K
· Up to 1,242,000 lumens
· Available in 3 shapes: tube, diamond and ellipse
| Sphere - Ellipse: HMI | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 1,150 W HMI | Sphere | Ellipse | 2x 575 W / G22 | 6.5’ | 6.5’x8’ | 35’ | 1 | 1 | 30 min | 45’ | 10 mph |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 8’ | 8’x10’ | 35’ | 2 | 1 | 35 min | 55’ | 15 mph |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 35 min | 55’ | 15 mph |
| 4.8 KW HMI | Sphere | Ellipse | 4x 1.2 KW / G38 | 12’ | 12’x14’ | 65’ | 5 | 1 | 45 min | 100’ | 20 mph |
| 5 KW HMI | Ellipse | 2x 2.5 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
| 8 KW HMI | Ellipse | 2x 4 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
| 10 KW HMI | Sphere | 4x 2.5 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
| 16 KW HMI | Sphere | 4x 4 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
| ACCESSORIES: | Skirts | Reflectors | |||||||
| Sphere - Ellipse: Tungsten | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 6.5’ | 6’x8’ | 40’ | 1 | 1 | 30 min | 45’ | 10 mph |
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 8’ | 8’x10’ | 45’ | 2 | 1 | 30 min | 45’ | 15 mph |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 8’ | 8’x10’ | 40’ | 2 | 1 | 30 min | 45’ | 15 mph |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 30 min | 45’ | 15 mph |
| 8 KW Tungsten | Sphere | Ellipse | 8x 1 KW / G6.35 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
| 10 KW Tungsten | Sphere | Ellipse | 2x 5 KW / G38 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
| 15 KW Tungsten | Sphere | Ellipse | 2x 5 KW | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
| + 2x 2.5 KW / G38 | |||||||||
| 20 KW Tungsten | Sphere | Ellipse | 4x 5 KW / G38 | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
| Sphere - Ellipse: Hybrid | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 8’ | 8’x10’ | 35’ | 2 | 1 | 40 min | 45’ | 15 mph |
| Hybrid | + 1x 1.2 KW G38 | ||||||||
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 10’ | 10’x12’ | 45’ | 3 | 1 | 40 min | 45’ | 15 mph |
| Hybrid | + 1x 1.2 KW G38 | ||||||||
| 7.4 KW | Sphere | Ellipse | 2x 2.5 KW | 12’ | 12’x14’ | 60’ | 5 | 1 | 55 min | 100’ | 20 mph |
| Hybrid | + 2x 1.2 KW G38 | ||||||||
| 8.4 KW | Ellipse | 6x 1 KW | 8.8’x12’ | 40’ | 4 | 1 | 40 min | 55’ | 15 mph |
| Hybrid | + 2 x 1.2 KW G6.35 + G38 | ||||||||
| 9.6 KW | Ellipse | 6x 1 KW | 12’x14’ | 50’ | 5 | 1 | 55 min | 100’ | 20 mph |
| Hybrid | + 3x 1.2 KW G6.35 + G38 | ||||||||
| 18 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 3x 4 KW G6.35 + G38 | ||||||||
| 18 KW | Sphere | 2x 5 KW | 16.5’ | 80’ | 10 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 2x 4 KW G38 | ||||||||
| 19 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 1x 5 KW | ||||||||
| + 2x 4 KW / | |||||||||
| G6.35 + G38 | |||||||||
| 20 KW | Ellipse | 8x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 3x 4 KW | ||||||||
| G6.35 + G38 | |||||||||
| Sphere - Ellipse: Sodium / Mercury | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 4 KW | Sphere | 4x 1 KW / | 14’ | 60’ | 5 | 1 | 65 min | 100’ | 15 mph |
| Sodium / Mercury | Mogul E39 | ||||||||
