DC12 / 48V Electrical Lighting Accessories , Convertor Waterproof Electronic LED Driver

Basic Information
Place of Origin: HAFE
Brand Name: HAFE
Certification: CE
Model Number: DC12V 24V 36V 48V AC 85-265V 100-240V
Minimum Order Quantity: 1UNIT
Price: Negotiable
Packaging Details: Export standard packing
Delivery Time: 5-8working days
Payment Terms: T/T
Supply Ability: 3000 UNITS/month
Detail Information
Type: LED Driver Advantage: Waterproof
DC Series1: 12V DCseries2: 24V
DCseries3: 36V DCseries4: 48V
AC Series1: 85-265V ACseries2: 100-240V
High Light:

led lighting accessories

,

light fitting parts


Product Description

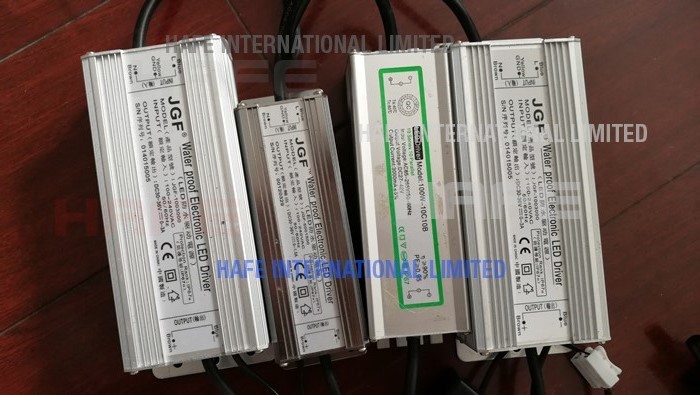

DC12V 24V 36V 48V AC 85-265V 100-240V Convertor Waterproof Electronic LED Driver



The advantage of  Waterproof power supply 20W 30w 50w 100w constant voltage led driver for outdoor lighting:



1. Constant voltage style power supply
2. 170~264VAC AC input range
3. Small volume,low weight,high efficiency
4. Protections: short circuit/over load/over voltage/over temp
5. Cooling by free air convection
6. Fully encapsulated with IP67 level
7. 100% full load burn-in test

8. 1 Year warranty



Basic paramters
  CE PFC RoHS IP67 SELV
Inrush current (Max.) Cold start, 40A/230VAC
Protections Over Temperature : +85℃±10℃ Shut down o/p voltage, re-power on to recover
Over Voltage: 110% ~ 130% Shut down o/p voltage, re-power on to recover
Over Load : 130% Shut down o/p voltage, re-power on to recover
Short Circuit Hiccup mode design, automatically recover after the problem is removed
Power Factor Correction PFC>0.98 at 110VAC, PFC>0.95 at 230VAC
Withstand Voltage I/P-O/P: 3KVAC, I/P-FG:1.5KVAC, OP-FG: 0.5KVAC
Security Standards EN-61347-1, EN-61347-2-13, design refer to UL8750
EMC EN55015: 2013/A1:2015, EN61547:2009; EN61000-3-2: 2014; EN61000-3-3: 2013
Working Temperature -25℃ ~ +50℃ (This series can work -50℃ normally
Life Time +25~+30℃≥50000hrs
Size (L*W*H) 170*48*34mm



DC12 / 48V Electrical Lighting Accessories , Convertor Waterproof  Electronic LED Driver 0DC12 / 48V Electrical Lighting Accessories , Convertor Waterproof  Electronic LED Driver 1DC12 / 48V Electrical Lighting Accessories , Convertor Waterproof  Electronic LED Driver 2
